Stainless Steel Pneumatic Globe Valve with Flange Seal and High-Pressure Resistance
The valve has a simple structure, making manufacturing and maintenance easy; it has a short working stroke and fast opening/closing time. The sealing surface between the closing element (disc) and the valve seat adopts a conical seal, which requires low closing force, offers erosion resistance, and ensures good sealing performance. The valve seat is replaceable and can be arbitrarily combined with the sealing surface materials of the closing element to meet the requirements of working conditions and extend service life.

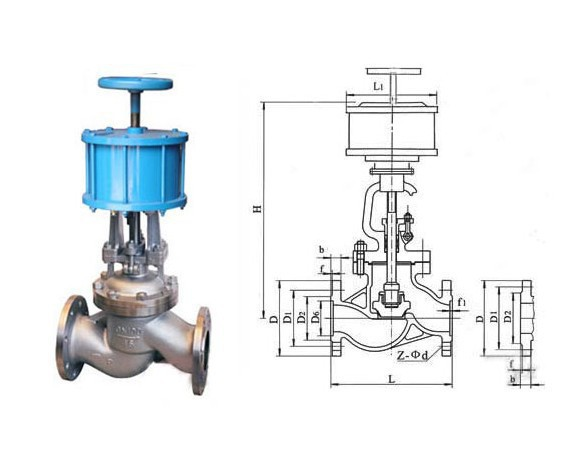

Main Dimensions and Connection Sizes for 1.6MPa:
|
1.6MPa |
DN |
L |
D |
D1 |
D2 |
b |
n-Φd |
H |
D0 |
|
Convex flange |
10 |
130 |
90 |
60 |
40 |
14 |
4-Φ14 |
198 |
120 |
|
RF J641H J641Y J641W J641F J641N 16C 16P 16R 16I |
15 |
130 |
95 |
65 |
45 |
14 |
4-Φ14 |
218 |
120 |
|
20 |
150 |
105 |
75 |
55 |
14 |
4-Φ14 |
258 |
140 |
|
|
25 |
160 |
115 |
85 |
65 |
14 |
4-Φ14 |
275 |
140 |
|
|
32 |
180 |
135 |
100 |
78 |
16 |
4-Φ18 |
280 |
160 |
|
|
40 |
200 |
145 |
110 |
85 |
16 |
4-Φ18 |
330 |
180 |
|
|
50 |
230 |
160 |
125 |
100 |
16 |
4-Φ18 |
350 |
200 |
|
|
65 |
290 |
180 |
145 |
120 |
18 |
4-Φ18 |
370 |
280 |
|
|
80 |
310 |
195 |
160 |
135 |
20 |
8-Φ18 |
400 |
280 |
|
|
100 |
350 |
215 |
180 |
155 |
20 |
8-Φ18 |
415 |
320 |
|
|
125 |
400 |
245 |
210 |
185 |
22 |
8-Φ18 |
460 |
360 |
|
|
150 |
480 |
280 |
240 |
210 |
24 |
8-Φ23 |
510 |
450 |
|
|
200 |
600 |
335 |
295 |
265 |
26 |
12-Φ23 |
710 |
500 |
|
|
250 |
650 |
405 |
335 |
320 |
30 |
12-Φ25 |
786 |
550 |
|
|
300 |
750 |
460 |
410 |
375 |
30 |
12-Φ25 |
925 |
600 |
