Stainless steel pneumatic flange soft and hard seal ball valve, American standard

Short Description:

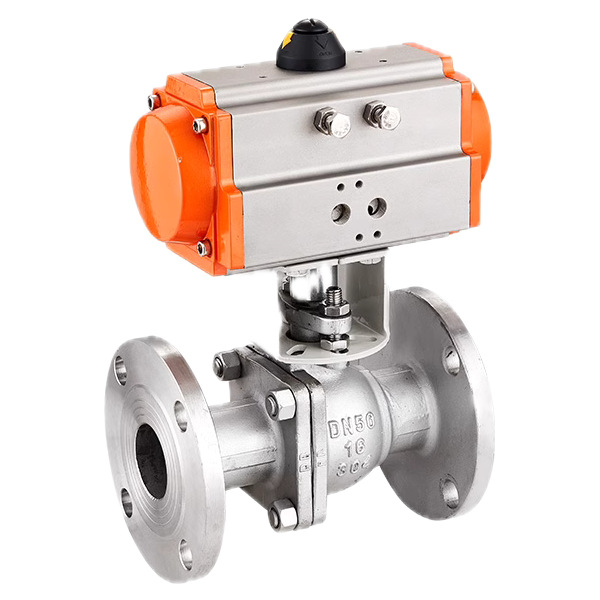

The Q641F-16P stainless steel pneumatic ball valve adopts flange connection, with cast steel and 304/316 stainless steel materials. The soft sealing material is PTFE (polytetrafluoroethylene). The product has a diameter range of DN32-DN1000 and is suitable for media such as water, oil, and steam at temperatures of 0℃-120℃.

Send email to us

Product Detail

Production workshop

QC

Shipments to customers

Product Tags

The Q641F stainless steel pneumatic ball valve is composed of a high-precision pneumatic actuator and a precision-cast ball valve. It is mainly divided into two categories: pneumatic soft-seal ball valves (≤200°) and pneumatic hard-seal ball valves (≤550°). Pneumatic ball valves have advantages such as compact structure, small size, reliable operation, low flow resistance coefficient, good sealing performance, easy maintenance, convenient installation, and strong adaptability.

The pneumatic ball valve can be equipped with travel limit switches, solenoid valves, pressure reducers, and a 0.4-0.7MPa air source to achieve switch operations, and send two pairs of passive contact signals to indicate the opening and closing of the valve.

Stainless steel pneumatic ball valves are particularly suitable for occasions where the medium is viscous, contains particles, or has fibrous properties. They are widely used in industrial automatic control systems such as petroleum, chemical engineering, teaching equipment, light industry, high-pressure equipment, pharmaceuticals, and paper-making for remote centralized control or local control.

Main dimensions

DN(mm)	1.6MPa					2.5MPa					4.0MPa					Actuator model (for reference only))
DN(mm)	L	D	D1	b	Z-φd	L	D	D1	b	Z-φd	L	D	D1	b	Z-φd	1.62.5MPa	4.0MPa
15	130	95	65	14	4-φ14	130	95	65	16	4-φ14	130	95	65	16	4-φ14	GTD-52	GTD-63
20	140	105	75	14	4-φ14	130	105	75	16	4-φ14	150	105	75	16	4-φ14	GTD-63	GTD63
25	150	115	85	14	4-φ14	140	115	85	16	4-φ14	160	115	85	16	4-φ14	GTD-63	GTD-83
32	165	135	100	16	4-φ18	165	135	100	18	4-φ18	180	135	100	18	4-φ18	GTD-83	GTD-83
40	180	145	110	16	4-φ18	165	145	110	18	4-φ18	200	145	110	18	4-φ18	GTD-83	GTD-83
50	200	160	125	16	4-φ18	203	160	125	20	4-φ18	230	160	125	20	4-φ18	GTD-83	GTD-110
65	220	180	145	18	4-φ18	222	180	145	22	8-φ18	290	180	145	22	8-φ18	GTD-110	GTD-110
80	250	195	160	20	8-φ18	241	195	160	22	8-φ18	310	195	160	22	8-φ18	GTD-110	GTD-127
100	280	215	180	20	8-φ18	305	230	190	24	8-φ23	350	230	190	24	8-φ23	GTD-127	GTD-160
125	300	245	210	22	8-φ18	356	270	220	28	8-φ25	400	270	220	28	8-φ25	GTD-160	GTD-190
150	360	280	240	24	8-φ23	394	300	250	30	8-φ25	480	300	250	30	8-φ25	GTD-190	AW17
200	400	335	295	26	12-φ23	457	375	310	34	12-φ25	600	375	320	38	12-φ25	AW17	AW17
