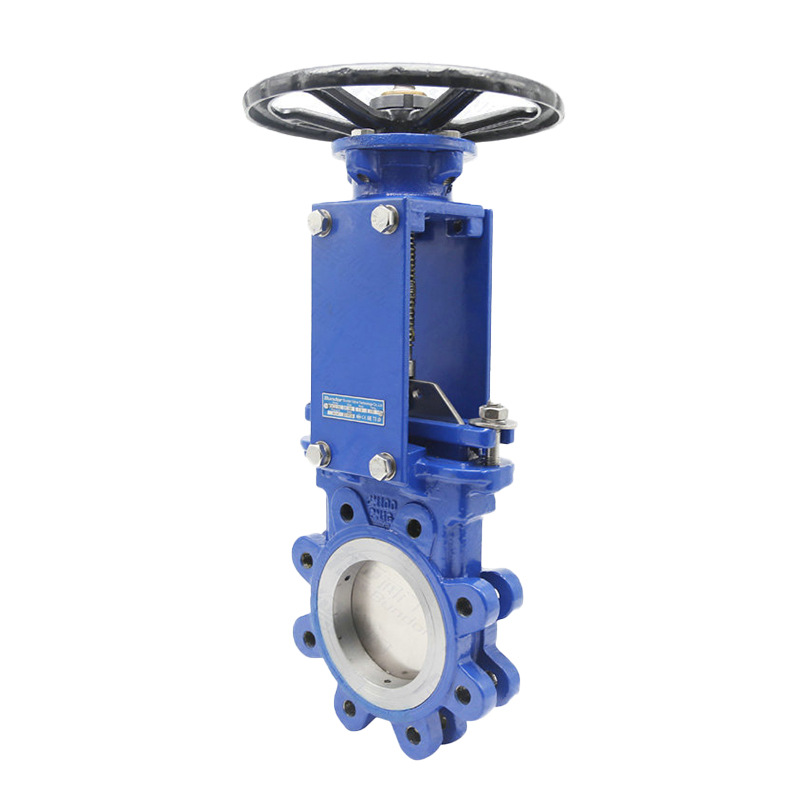

Stainless steel manual single-clamp knife gate valve

Short Description:

The PZ73X knife gate valve has a gate with a shearing function, which can scrape off the adhesives on the sealing surface and automatically remove debris. The stainless steel gate can prevent sealing leakage caused by corrosion. It is suitable for pipelines with media such as pulp, sewage, coal slurry, and ash slag cement mixtures containing suspended particles and fibrous materials. The gate is tightly pressed against the valve seat by the bottom lug. When higher medium tightness is required, an O-shaped sealing seat can be selected to achieve bidirectional sealing.

Send email to us

Product Detail

Production workshop

QC

Shipments to customers

Product Tags

Features and use

1、This s1, the series specification, the valve is suitable for sewage treatment, chemical industry, paper pulp industry and mining coal washing industry, the circulation medium for the liquid suspension, slurry and other pipelines to play a cutoff and open the role.

2、Valve adopts one side forced sealing, not only reliable sealing, but also can exclude deposition to achieve the sealing requirements. The valve body can be made of cast iron, carbon steel, stainless steel and PTFE to meet the different requirements of corrosion and abrasion resistance.

3、This structure is short in length and light in weight. Installation and maintenance are very convenient.

4、Application temperature:-10 ℃-120℃.

5、Nominal pressure(0.25MPa),0.6MPa,1.0MPa.

Main dimensions

PN (MPa)	DN (mm)	L	D	D1	D2	D0	n-Th	d	H1	H2
1.0 1.6	50	48	165	125	99	180	4-M16	18	290	350
	65	48	185	145	118	200	4-M16	18	310	375
	80	51	200	160	132	220	8-M16	18	350	430
	100	51	220	180	156	240	8-M16	18	405	505
	125	57	250	210	184	260	8-M16	18	450	575
	150	57	285	240	212	280	8-M20	23	510	660
	200	70	340	295	266	300	8-M20/12-M20	23	610	810
	250	70	395/405	350/355	319	340	12-M20/12-M24	23/27	765	1015
	300	76	445/460	400/410	370	380	12-M20/12-M24	23/27	820	1120
	350	76	505/520	460/470	430	400	16-M20/16-M24	23/27	970	1320
	400	89	565/580	515/525	480	450	16-M24/16-M27	27/30	1024	1424
	450	89	615/640	565/585	530/548	530	20-M24/20-M27	27/30	1235	1685
	500	114	670/715	620/650	582/609	600	20-M24/20-M30	27/33	1286	1786
	600	114	780/840	725/770	682/720	600	20-M27/20-M33	30/36	1486	2086
