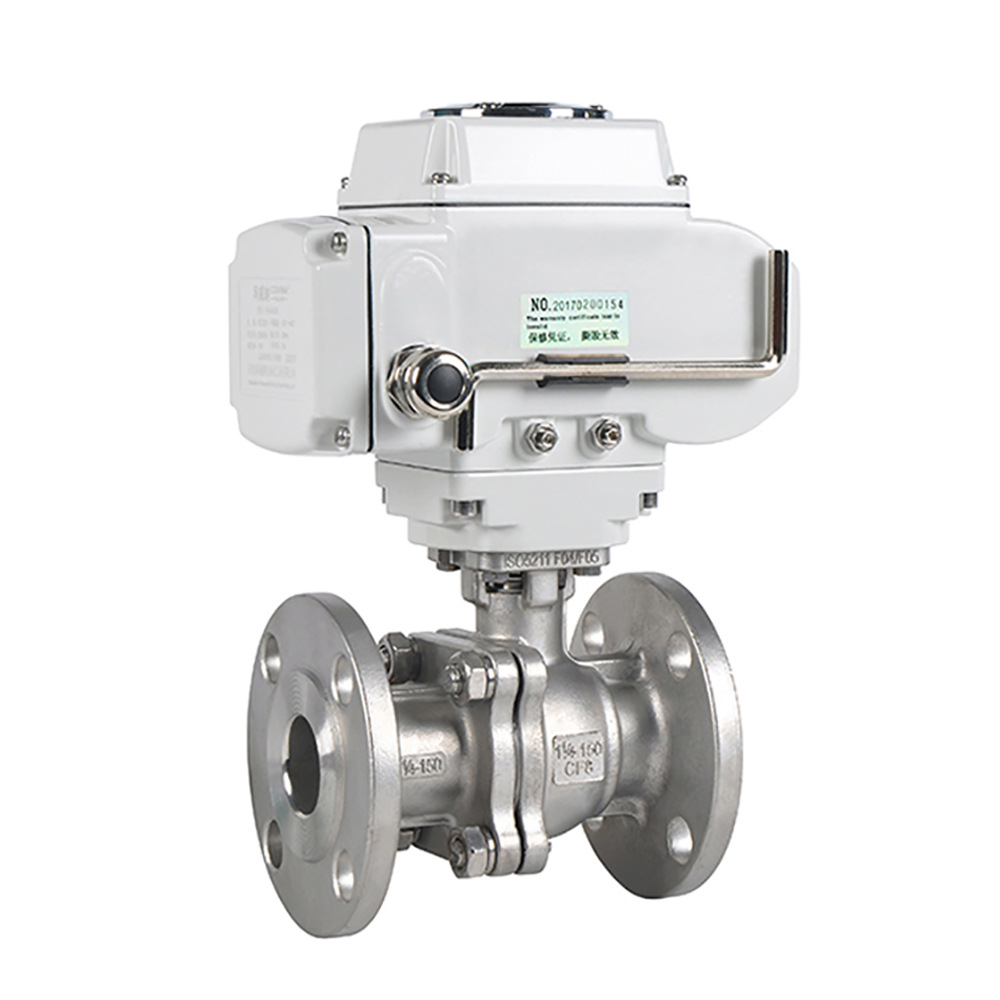

Stainless steel electric ball valve with flange connection

Short Description:

I produced electric flanged ball valve with strong functional, compact, lightweight and pleasant,and sophisticated wear and supporting simple, practical and convenient,but also have the example: 15 seconds, 30 seconds, 50 seconds, 100 seconds to chooae from a variety of sppeds. Product overall corrosion and rust, and can be centrally controlled by intelligent CNC.

Send email to us

Product Detail

Production workshop

QC

Shipments to customers

Product Tags

QT flanged ballvalve electric plant on the basis that I learn and absorb foreign advanced technology,based on newly developed generation products.The product box with die-cast aluminum,beautiful appearance, small size,light weight,high efficiency, high reliability,high protection performance, low noise characteristics,field operations,can also be remotely controlled. It can be widely used in petroleum, chemical, power plants,water treatment, paper and other industries. The product range, in general, based on yet another type of explosion-proof type, ordinary type of protection class IP67, special order up to IP68. Produce basic, with live action buttons light box type, the overall regulation and explosion proof (ExdⅡBt4).

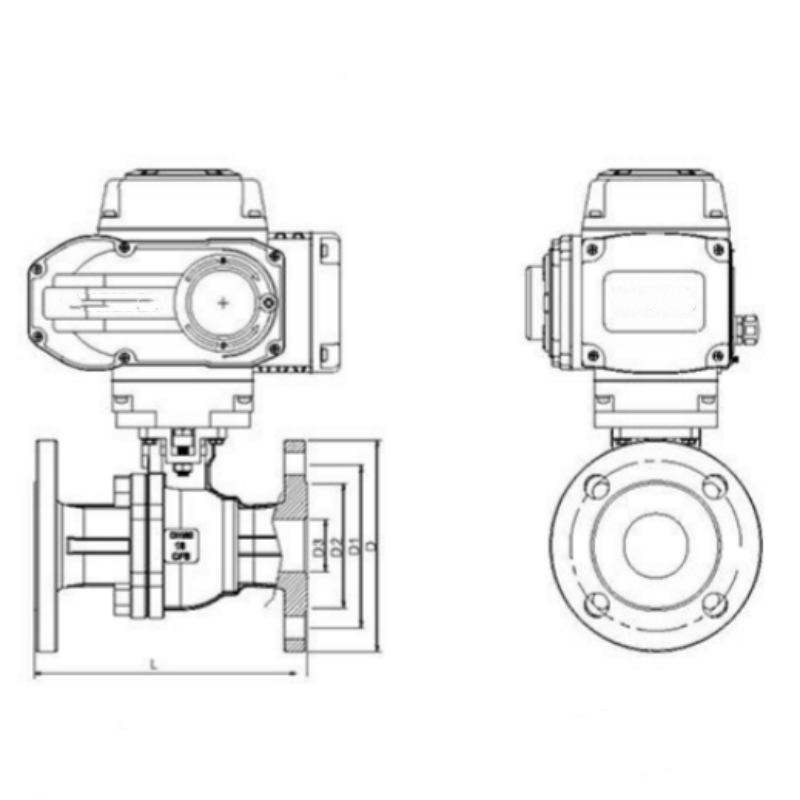

Main dimensions

DN(mm)	PN1.0MPa				PN1.6MPa				PN2.5MPa				PN4.0MPa
DN(mm)	L	D	D1	n-φd	L	D	D1	n-φd	L	D	D1	n-φd	L	D	D1	n-φd
15	108	95	65	4-14	108	95	65	4-14	108	95	65	4-14	130	95	65	4-14
20	117	105	75	4-14	117	105	75	4-14	117	105	75	4-14	150	105	75	4-14
25	127	115	85	4-14	127	115	85	4-14	127	115	85	4-14	165	115	85	4-14
32	140	135	100	4-18	140	135	100	4-18	140	135	100	4-18	178	135	100	4-18
40	165	145	110	4-18	165	145	110	4-18	165	145	110	4-18	190	145	110	4-18
50	178	160	125	4-18	178	160	125	4-18	178	160	125	4-18	216	160	125	4-18
65	190	180	145	4-18	190	180	145	4-18	190	180	145	4-18	241	180	145	8-18
80	203	195	160	4-18	203	195	160	8-18	230	195	160	8-18	283	195	160	8-18
100	229	215	180	8-18	305	215	180	8-18	305	230	190	8-23	305	230	190	8-23
125	356	245	210	8-18	356	245	210	8-18	356	270	220	8-25	381	270	220	8-25
150	394	280	240	8-23	394	280	240	8-23	394	300	250	8-25	403	300	250	8-25
200	457	335	295	8-23	457	335	295	12-23	457	360	310	12-25	502	375	320	12-30

Technical data

DN Nominal diameter		15~200
PN Nominal pressure		1.6
Testing pressure	Shell	2.4
	Sealing	1.76
Working temperature (℃ )		<300
Suitable mediums		Steam,water

Main dimensions

DN(mm)	PN1.0MPa			PN1.6MPa			PN2.5MPa			PN4.0MPa
	D	D1	n-φd	D	D1	n-φd	D	D1	n-φd	D	D1	n-φd
15	95	65	4-14	95	65	4-14	95	65	4-14	95	65	4-14
20	105	75	4-14	105	75	4-14	105	75	4-14	105	75	4-14
25	115	85	4-14	115	85	4-14	115	85	4-14	115	85	4-14
32	135	100	4-18	135	100	4-18	135	100	4-18	135	100	4-18
40	145	110	4-18	145	110	4-18	145	110	4-18	145	110	4-18
50	160	125	4-18	160	125	4-18	160	125	4-18	160	125	4-18
65	180	145	4-18	180	145	4-18	180	145	4-18	180	145	8-18
80	195	160	4-18	195	160	8-18	195	160	8-18	195	160	8-18
100	215	180	8-18	215	180	8-18	230	190	8-23	230	190	8-23
125	245	210	8-18	245	210	8-18	270	220	8-25	270	220	8-25
150	280	240	8-23	280	240	8-23	300	250	8-25	300	250	8-25
200	335	295	8-23	335	295	12-23	360	310	12-25	375	320	12-30
