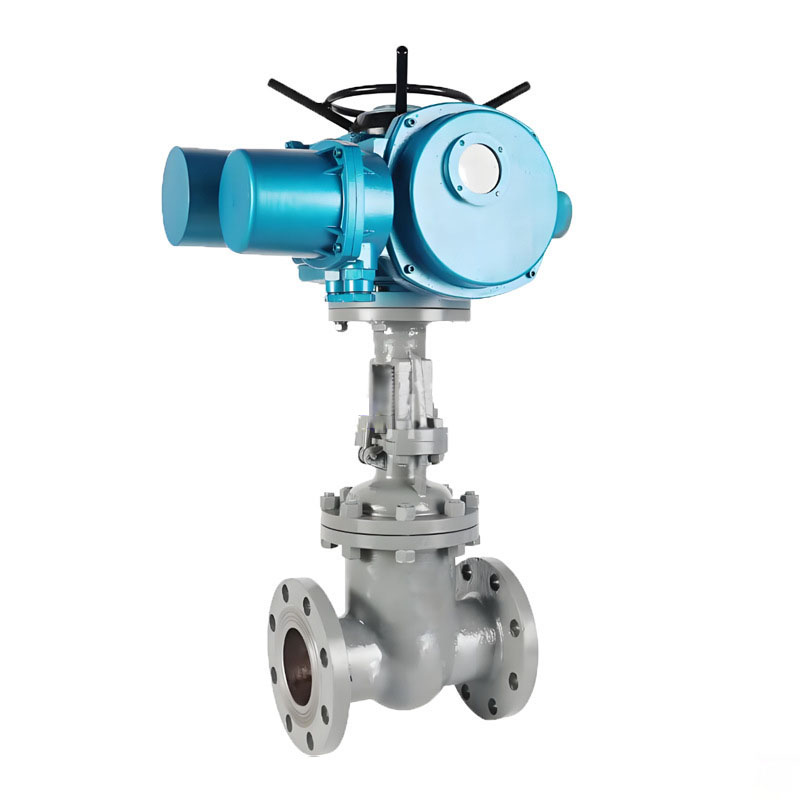

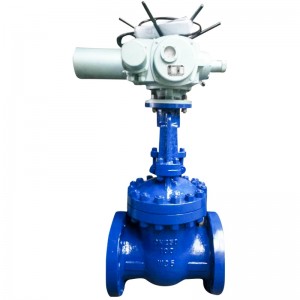

Smart integrated electric gate valve with flange connection

Short Description:

The Z941H – 64C electric cast steel gate valve adopts flange connection and is mainly used to connect or cut off the medium in pipelines. The electric flange gate valve is composed of a gate valve body equipped with a multi – turn electric actuator, which makes the valve disc move up and down in a straight line to realize remote control of valve position switching, convenient and fast. The electric gate valve is suitable for a wide range of pressures, temperatures and diameters, especially for medium and large diameter pipelines.

Send email to us

Product Detail

Production workshop

QC

Shipments to customers

Product Tags

The electric flange gate valve is suitable for remote control of valve position switching, cutting off or connecting pipeline media on the pipelines of various systems in petroleum, chemical, hydraulic and thermal power stations with a nominal pressure of PN1.6～16.0MPa and a working temperature of ≤-29℃～500℃.

The wedge – type rigid single gate disc has a simple structure, small size and reliable use. It is suitable for various media and pressure environments at normal and medium temperatures. It is widely used in water supply and drainage, gas, electric power, metallurgy, petroleum, chemical, light textile, urban construction and other industries, and is used for opening and closing on pipelines of media such as steam, water and oil.

The flow direction of the medium is generally not limited. The medium can flow through from either side of the gate valve, and the purpose of connection or cut – off can be achieved. It is convenient for installation and suitable for pipelines where the flow direction of the medium may change.

Main dimensions

Nominal diameter DN(in)	Main Overall Dimensions and Connection Dimensions(mm)										Electric actuator
Nominal diameter DN(in)	L	D	D1	D2	D6	b	z-Φd	f	f2	H	Electric actuator
Z940、Z941、Z942
50	250	175	135	105	88	26	4-Φ23	3	4	667	ZB15
65	280	200	160	130	110	28	8-Φ23	3	4	685	ZB15
80	310	210	170	140	121	30	8-Φ23	3	4	748	ZB20
100	350	250	200	168	150	32	8-Φ25	3	4.5	845	ZB20
125	400	295	240	202	176	36	8-Φ30	3	4.5	920	ZB20
150	450	340	280	240	204	38	8-Φ34	3	4.5	1009	ZB40
200	550	405	345	300	260	44	12-Φ34	3	4.5	1253	ZC60
250	650	470	400	345	313	48	12-Φ41	3	4.5	1449	ZC60
300	750	530	460	412	361	54	16-Φ41	4	4.5	1867	ZC90
350	850	595	525	475	422	60	16-Φ41	4	5	1913	ZC120
400	950	670	585	525	474	66	16-Φ48	4	5	2017	ZC180
500	1150	800	705	640	576	70	20-Φ54	4	5	2459	ZC250
