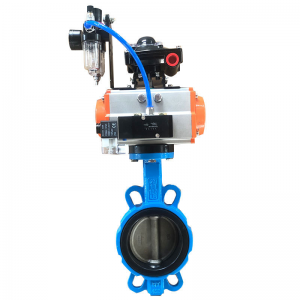

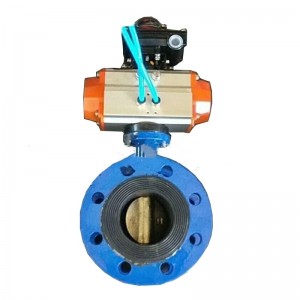

Pneumatic regulating wafer butterfly valve with stainless steel valve plate, non-rusting

Short Description:

The D671X – 16Q pneumatic wafer soft – seal butterfly valve is composed of a pneumatic actuator and a butterfly valve. A pneumatic butterfly valve is a kind of pneumatic valve that uses a circular butterfly plate rotating with a valve stem as the opening and closing part to achieve opening and closing actions. It is mainly used as a cut – off valve, and can also be designed to have the function of regulation or both cut – off and regulation. At present, butterfly valves are increasingly used on low – pressure large and medium – diameter pipelines.

Send email to us

Product Detail

Production workshop

QC

Shipments to customers

Product Tags

Classification of pneumatic butterfly valves: stainless steel pneumatic butterfly valves, hard – seal pneumatic butterfly valves, soft – seal pneumatic butterfly valves, carbon steel pneumatic butterfly valves. The main advantages of pneumatic butterfly valves are simple structure, small size, light weight and low cost, and these characteristics are particularly remarkable for pneumatic butterfly valves. Installed in high – altitude dark channels, it is convenient to operate through a two – position five – way solenoid valve, and can also regulate the flow medium. A pneumatic butterfly valve is composed of a pneumatic actuator and a butterfly valve. It is a pneumatic valve that uses a circular butterfly plate rotating with the valve stem as the opening and closing part to achieve opening and closing actions, and is mainly used as a cut – off valve.

Main Size Table

DN (mm)	A	B	L	OD	OD1	n-0d	OE	OF	n1-Cd1	①	h	L1	L2	H1	H2
50	132	72	42	165	125	4-18	65	50	4-8	12.60	32	147	65	105	92
65	138	82	45	185	145	8-18	65	50	4-8	12.60	32	168	72	105	107.5
80	153	95	45	200	160	8-18	65	50	4-8	12.60	32	184	81	105	119.5
100	168	107	52	220	180	8-18	90	70	4-10	15.77	32	204	92	110	128.7
125	183	125	55	250	210	8-18	90	70	4-10	18.92	32	262	98	110	136.5
150	195	137	56	285	240	8-22	90	70	4-10	18.92	32	268	109.5	110	153
200	235	169	60	340	295	12-22	125	102	4-12	22.10	45	301	127.5	130	185
250	267	207	66	405	355	12-26	125	102	4-12	28.50	45	390	137.5	130	202
300	305	236	77	460	410	12-26	125	102	4-12	31.70	45	458	158	165	227
350	359	265	77	520	470	16-26	125	102	4-12	31.70	45	525	189	165	260
400	392	310	86	580	525	16-30	175	140	4-18	33.15	52	532	210	185	285
450	420	330	105	640	585	20-30	175	140	4-18	38.00	52	602	245	185	319
500	467	363	130	715	650	20-33	175	140	4-18	41.15	64	602	245	185	319
600	548	424	152	840	770	20-36	210	165	4-22	50.65	70	722	273	200	356
